CNC Engraving Machine

Highlights

Major parts of the machine are made of graded casting, basic structure consist well ribbed bed and gantry which offers vibration-free smooth movement of X & Y slides and the whole machine is mounted on heavy duty fabrication.

Capable of Engraving & Milling

The machine can do both 2D & 3D Engraving as well as small Milling work on most of material i.e. MS, SS, Carbon Steel, C.I., Aluminum, Copper, Brass, Plastic, Fiber, Wood, MDF boards etc.

CNC Controller

  • Full featured PC-CNC Controller.
  • The controller enables to use EMC2 standard G-Codes / M-codes for 3D operations.
  • Allows direct import of DXF, BMP, JPG & HPGL files (through LazyCam).
  • Visual G-code display.

Models

  • ADI– It is a Sanskrit word which means “First or Origin“. This machine is developed first in CNC Engraving Series and hence it is named so. It is a “Fixed Table – Moving Gantry” type engraving machine.

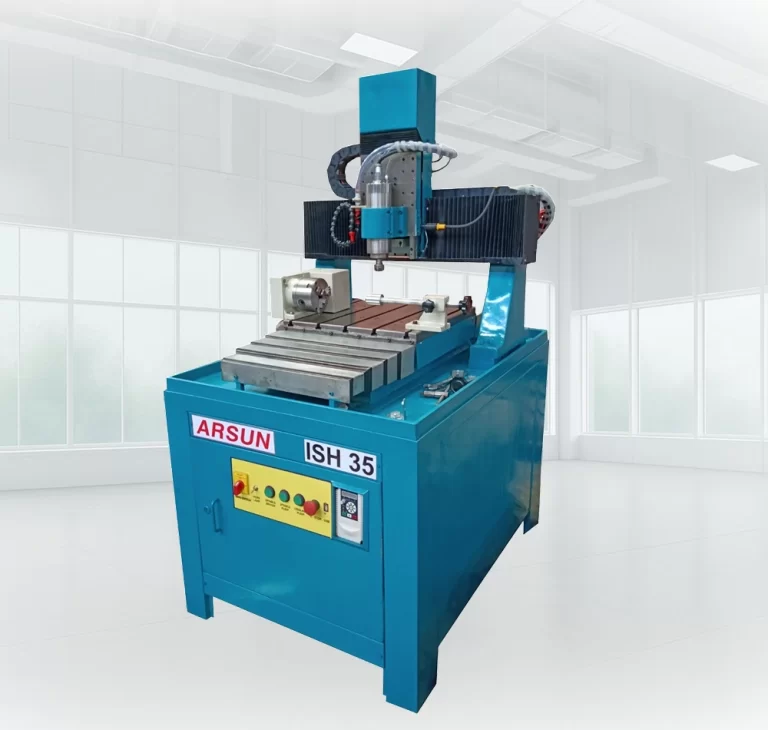

  • ISH 35 – It is a Sanskrit word which means “God“. Its meaning also associated with “Love“. It is a “Fixed Gantry, Moving Table” type engraving machine.

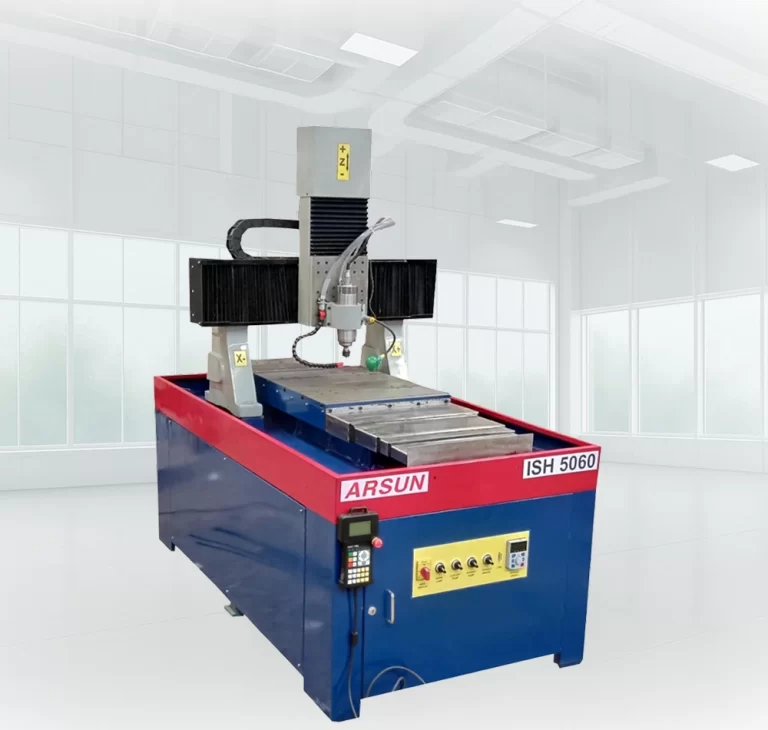

  • ISH 50 – It is a Sanskrit word which means “God“. Its meaning also associated with “Love“. It is a “Fixed Gantry, Moving Table” type engraving machine.

Application

Manufacturing of dies, moulds, punches, electrodes for spark erosion, printing-cutting and embossing dies & tools, vacuum forming dies, solid models, control panel plates, name plates, sign making, gift articles, mementos, engraving for rubber stereos, light milling work, etc.

Technical Data

Specifications Unit ADI ISH 35 ISH 50
Overall table size mm 530 x 500 470 x 470 600 x 560
X axis travel mm 370 350 500
Y axis travel mm 370 350 500
Z axis travel mm 100 150
Spindle motor power kw 1.5 2.2
Spindle speed rpm 18000 24000
Max tool dia. mm 8 12
